MPACT Marine Pipe and Cable Transit

MPACT Marine Pipe and Cable Transit

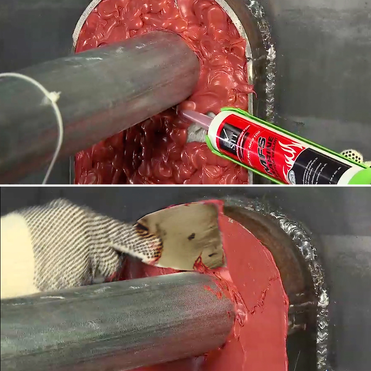

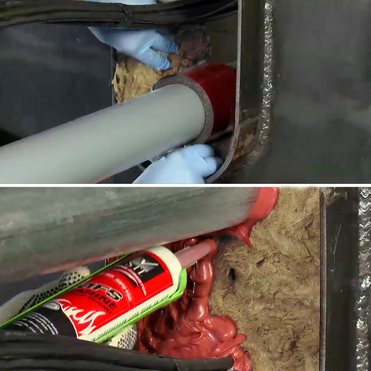

The fastest & most flexible fire and watertight sealing system for fire-rated bulkheads and decks. MPACT represents the fastest solution for sealing fire-rated cable and pipe penetrations in both watertight and non-watertight divisions. It combines pliable non-combustible filler blanket with advanced watertight MFS sealant.

Test Standards DNVGL-CP-0165
IMO-FTP

Third Party Approvals

Compare

Features

Quick and Easy to Install
Safe and Simple to Clean Up
Meets IMO FTP Code
Provides Water and Gas-Tight Ratings
Conforms to Virtually Any Condition
Can be Modified to Allow for Retrofit

Applications

Blank Openings

Cables

Metallic Pipe

Multiple Penetrations

Plastic Pipe

Properties

Autobonding

Flexible

Light Weight

Low VOC

Paintable

Re-Enterable

Smoke Barrier

Noise Reduction

Watertight

Specifications

Property	Value
Color	Off-White
Thickness	25 mm (1 in.)
Density	160 kg/cu. m (10 pcf)
Noncombustible (IMO 2010 FTP, Part 1)	Yes
In Service Temperature	Less than 982°C (1,800°F)
Fiber Melting Temperature	Greater than 1,193°C (2,179°F)
IARC Classification	Group 3
Recycled Content	100%
Shelf Life	No Limit

Ordering Information

Catalog Number	UPC Number	Description	Weight (Each)

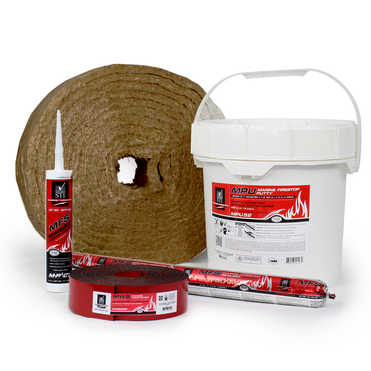

MFS100	730573413104	Marine Firestop Sealant, Red, 281 mL cartridge	1.16 lbs
MWS250	730573440049	Marine Wrap Strip, 12’ L x 2” W x 0.25” T	3.34 lbs
MFB530B	730573950814	Marine Filler Blanket, 30’ L x 5” W x 1” T	14 lbs
MFB730B	730573950821	Marine Filler Blanket, 30’ L x 7” W x 1” T	18.3 lbs
