EZ-Firestop Grommet

EZ-Firestop Grommet
EZ-Firestop Grommet
EZ-Firestop Grommet
EZ-Firestop Grommet
EZ-Firestop Grommet

EZ-Firestop Grommet

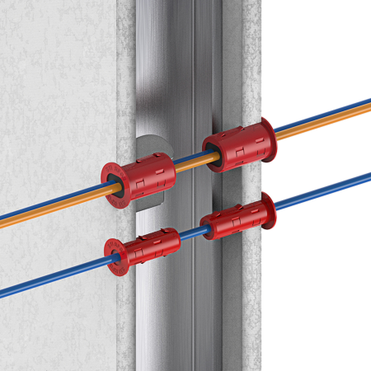

EZ-Firestop Grommets make sealing penetrations of individual and small bundles of cables through gypsum board walls a snap. Molded from premium plenum-plastics and incorporating a soft foam inner core, EZ-Firestop Grommets eliminate the need for sleeves, firestop putties & sealants.

Test Standards ASTM E814 (UL1479)
CAN/ULC-S115
Third Party Approvals

Features

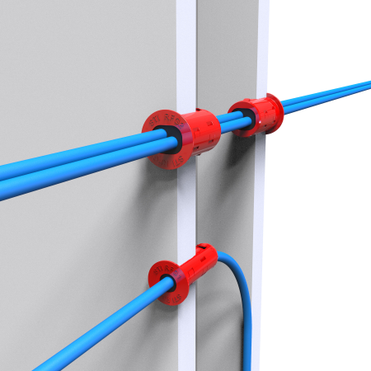

  • Suited for addressing single membrane or complete through-penetrations
  • Available as a single cable or multiple cable solution

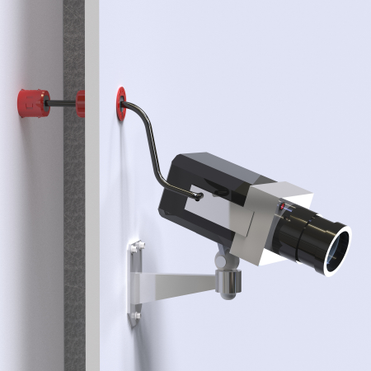

  • Ideal for Alarm, Security or Wireless Access Point installations
  • Designed for 1 & 2 Hr. Fire-Rated Gypsum Board Wall assemblies

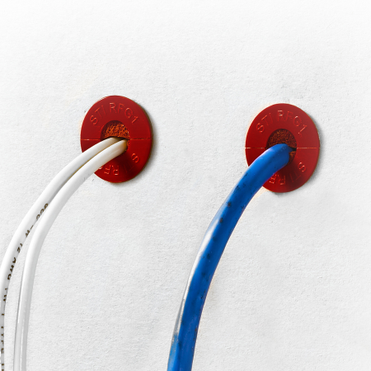

  • Professional finished appearance
  • For use in gypsum board wall (i.e. drywall) construction
  • Rated for use in plenums
Applications
Cables
Properties
Permanent
Finished Product
Intumescent
Light Weight
Low VOC
No Expiration
Paintable
Zero Maintenance
Smoke Barrier

Specifications

Property Value
Color Red
Plenum Grade Yes
Leakage Rating Less than 1 CFM (ANSI/UL1479)
In Service Temperature Less than 130°F (54°C)
VOC content N/A
Shelf Life No Limit
Overall Length 1-5⁄8" (41.3 mm)
Installed Depth (from wall surface) 1-9⁄16" (39.7 mm)
Required Opening for RFG1 9⁄16" (14 mm)
Required Opening for RFG2 1" (25 mm)

Ordering Information

Catalog Number UPC Number Description (UOM) Qty. Case Qty. Weight (Each) Image

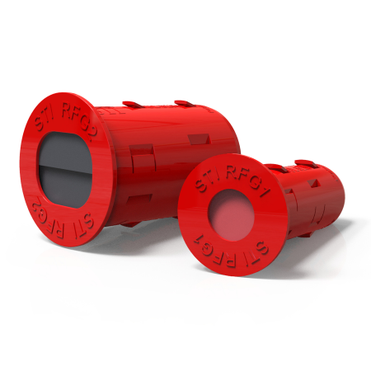

RFG2 730573250594 EZ-Firestop Grommet--Two-piece split cable grommet for single or small multiple cables up to 0.53 in. (14 mm) O.D. 1 10 0.4 lbs EZ-Firestop Grommet--Two-piece split cable grommet for single or small multiple cables up to 0.53 in. (14 mm) O.D.
RFG1 730573250587 EZ-Firestop Grommet--Two-piece split cable grommet for single or small multiple cables up to 0.27 in. (7 mm) O.D. 1 10 lbs EZ-Firestop Grommet--Two-piece split cable grommet for single or small multiple cables up to 0.27 in. (7 mm) O.D.
EZ-Firestop Grommet
EZ-Firestop Grommets make sealing penetrations of individual and small bundles of cables through gypsum board walls a snap. Molded from premium plenum-plastics and incorporating a soft foam inner core, EZ-Firestop Grommets eliminate the need for sleeves, firestop putties & sealants.
