Firestop Clash Management

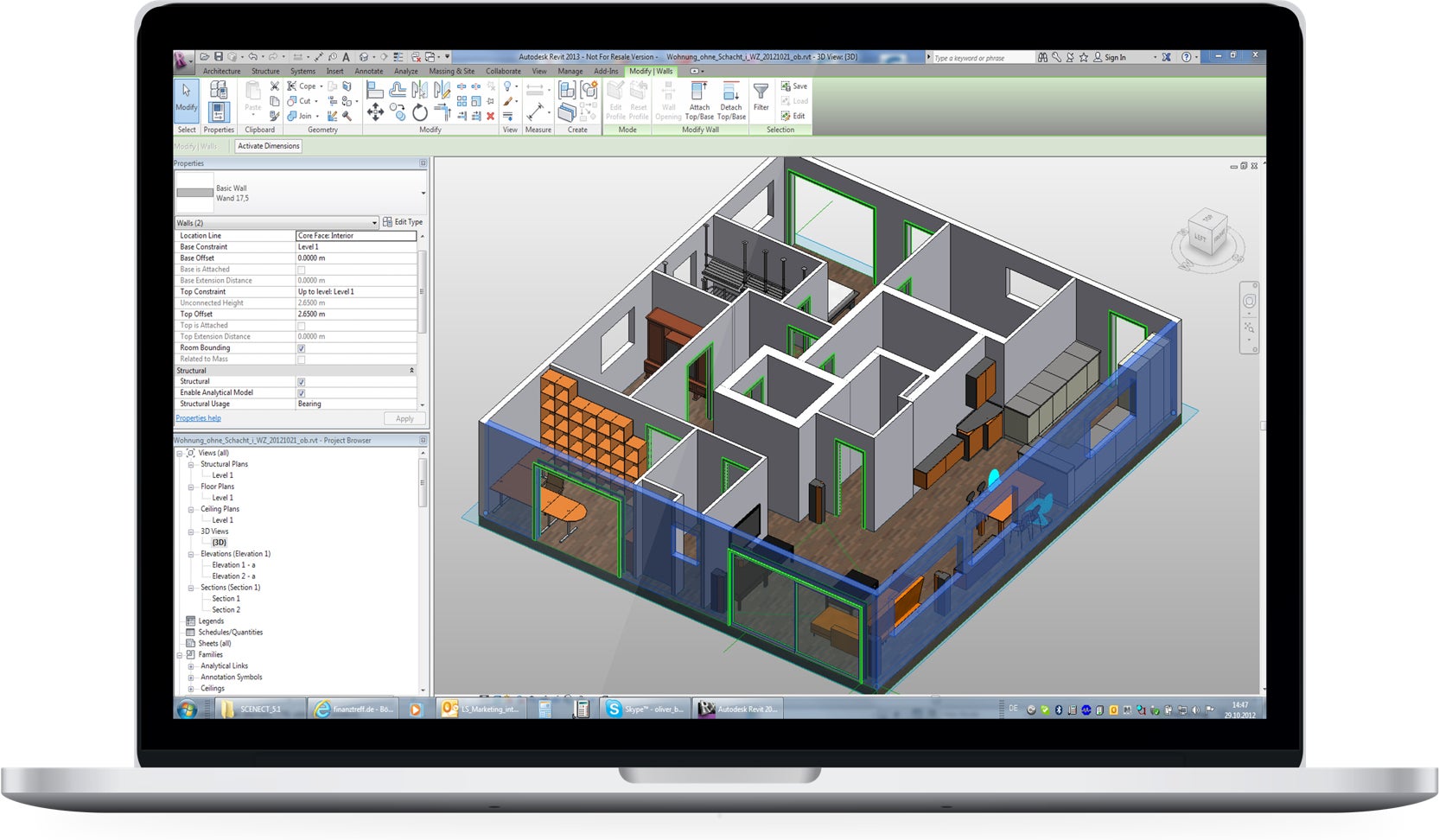

The FCM (Firestop Clash Management) plugin for Autodesk Revit® uses clash detection to find locations where penetrants meet fire-rated barriers and automatically selects the appropriate firestop systems. It removes the complexity of designing firestop systems and ensures that when it comes time for construction, the systems selected provide the fastest installation and best installed cost.

Firestop Clash Management Instructional Video

Introducing a powerful new plugin for AutoDesk Revit®. The FCM (Firestop Clash Management) plugin uses clash detection to find locations where penetrants and/or joints meet fire-rated barriers and automatically selects the appropriate firestop systems. It removes the complexity of designing firestop systems and ensures that when it comes time for construction, the systems selected provide the fastest installation and best installed cost. It is as easy as 1, 2, 3!

Plugin Features

  • Clash detection finds locations where penetrants intersect rated barriers
  • Best UL Certified firestop system for each condition is selected and inserted into the model at clash location
  • Openings are designed based on optimal UL System design parameters
  • Connects automatically to STI’s System Search to ensure latest system revision is selected
  • Automatically generate an openings report for construction coordination
Watch Webinar
Step 1

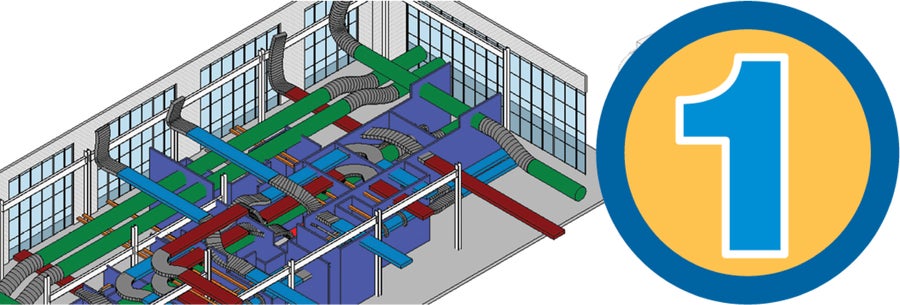

Clash Detection

Clash Detection

Scan the Revit® model to find clash points where firestopping is required.

Step 2

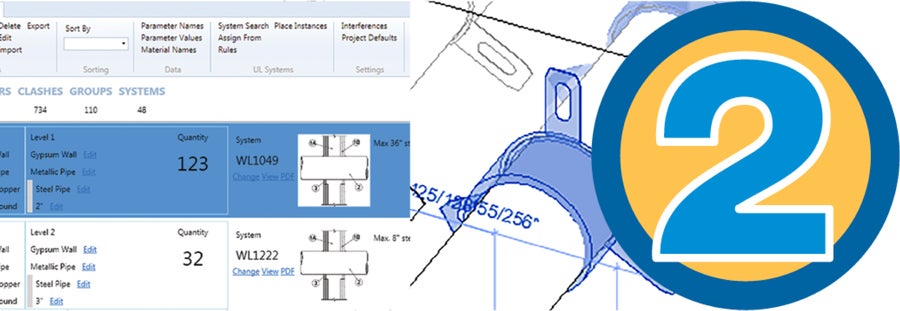

System & Product Selection

System & Product Selection

Firestop systems are selected and automatically assigned to each clash point. Chooses the correct firestop product every time and imports relevant information into the model.

Step 3

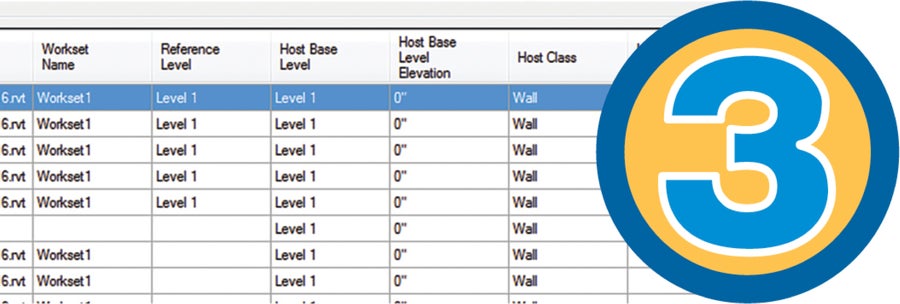

Openings Report

Openings Report

Generates openings reports with assembly details and firestop system information for coordination meetings.

download buttonPlugin Powered by:Blue_StrucSoft_3



Plugin Features

  • Clash detection finds locations where penetrants intersect rated barriers
  • Detects joint locations where multiple rated-barriers intersect
  • Best UL Certified firestop system for each condition selected and inserted into model at clash location
  • Openings are designed based on optimal UL System design parameters
  • Connects automatically to STI’s System Search to ensure latest system revision is selected
  • Automatically generate an openings report for construction coordination
  • See our Digital Knowledge Base to learn more!

Compatible with Autodesk Revit® 2022 – 2025
