These intumescent urethane foam blocks are installed in openings by compressing and stacking into the opening in a brick-like fashion. The intumescent block expands in high temperatures to impede fire, smoke, and gas passage.
EZ-Path Series 44NEZ Smoke & Acoustical Pathway provides exceptional leakage and acoustical performance with tested and approved cable capacities ranging from 0 up to 100% visual fill
These intumescent urethane foam blocks are installed in openings by compressing and stacking into the opening in a brick-like fashion. The intumescent block expands in high temperatures to impede fire, smoke, and gas passage.
These intumescent urethane foam blocks are installed in openings by compressing and stacking into the opening in a brick-like fashion. The intumescent block expands in high temperatures to impede fire, smoke, and gas passage.
EZ-Path Series 44NEZ Smoke & Acoustical Pathway provides exceptional leakage and acoustical performance with tested and approved cable capacities ranging from 0 up to 100% visual fill
These intumescent urethane foam blocks are installed in openings by compressing and stacking into the opening in a brick-like fashion. The intumescent block expands in high temperatures to impede fire, smoke, and gas passage.
These intumescent urethane foam blocks are installed in openings by compressing and stacking into the opening in a brick-like fashion. The intumescent block expands in high temperatures to impede fire, smoke, and gas passage.
These intumescent urethane foam blocks are installed in openings by compressing and stacking into the opening in a brick-like fashion. The intumescent block expands in high temperatures to impede fire, smoke, and gas passage.
These intumescent urethane foam blocks are installed in openings by compressing and stacking into the opening in a brick-like fashion. The intumescent block expands in high temperatures to impede fire, smoke, and gas passage.
EZ-Path Series 44NEZ Smoke & Acoustical Pathway provides exceptional leakage and acoustical performance with tested and approved cable capacities ranging from 0 up to 100% visual fill
These intumescent urethane foam blocks are installed in openings by compressing and stacking into the opening in a brick-like fashion. The intumescent block expands in high temperatures to impede fire, smoke, and gas passage.
SpecSeal Quick Clip Factory Installation System (L-Bracket)
SpecSeal Quick Clip Factory Installation System (L-Bracket)
SpecSeal Quick Clip Factory Installation System (L-Bracket)

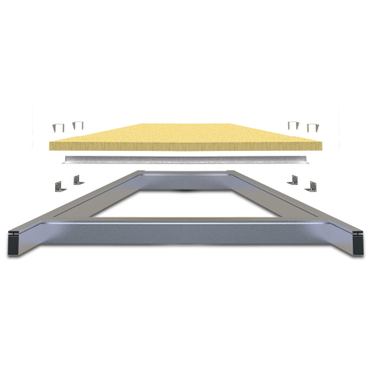

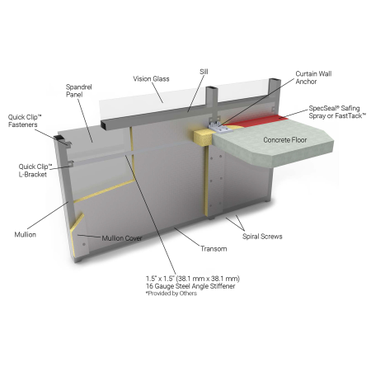

The SpecSeal® Quick Clip Factory Installation System (L‑Bracket) is the fastest and most efficient solution for installing curtain wall insulation in perimeter fire containment systems. Engineered for speed and simplicity, the system uses durable L‑shaped brackets that attach directly to the mullion. Once secured, installers simply cut and position the curtain wall insulation, then lock it in place using self‑locking fasteners for a secure, code‑compliant installation. The Quick Clip System is designed to eliminate the need for stiffener channels in most applications where insulation thickness exceeds 2 inches. When a stiffener channel is required, it can be locked into position without additional mechanical fastening, further reducing installation time. Versatile and installer‑friendly, the SpecSeal Quick Clip System is ideal for factory‑installed curtain wall panels, unitized systems, and recladding or retrofit projects where insulation must be installed from the building exterior. This innovative system enhances jobsite productivity while delivering reliable performance in perimeter fire barrier assemblies.

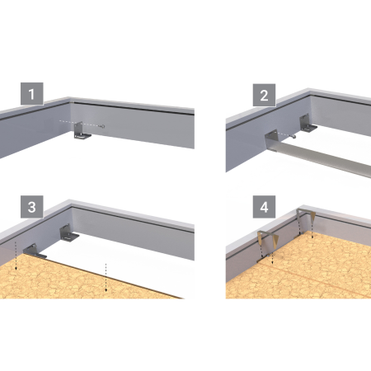

SpecSeal Quick Clip Factory Installation System (L-Bracket) is the fastest way to install curtain wall insulation for perimeter fire barrier systems. Simply fasten the L-shaped brackets to the mullion, cut and fit the curtain wall insulation, and then secure the insulation in place with self-locking fasteners. The brackets also allow the stiffener channel to be locked into place without additional mechanical attachment. This versatile system is great for factory-insulated curtain wall panels or recladding projects where the system will be installed from the building's exterior.
SpecSeal Quick Clip Factory Installation System (L-Bracket)
SpecSeal Quick Clip Factory Installation System (L-Bracket) is the fastest way to install curtain wall insulation for perimeter fire barrier systems. Simply fasten the L-shaped brackets to the mullion, cut and fit the curtain wall insulation, and then secure the insulation in place with self-locking fasteners. The brackets also allow the stiffener channel to be locked into place without additional mechanical attachment. This versatile system is great for factory-insulated curtain wall panels or recladding projects where the system will be installed from the building's exterior.
